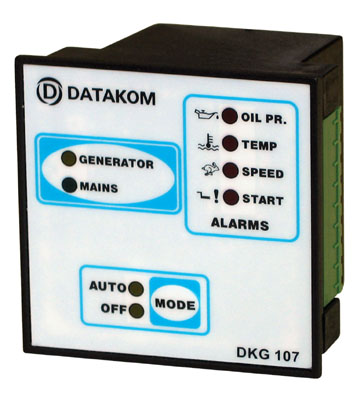

DKG-107
The lowest cost AMF module
  • Factory set timers
  • Adjustable AC low voltage limit
  • Jumper selectable 50/60Hz operation
  • Jumper selectable oil pressure / oil level switch input
  • Dimensions: 72 x 72 x 52mm (WxHxD)
  • Description here.

    DKG-105
    Simple, compact and programmable
  • Configurable from front panel
  • Digital display of genset frequency and phase voltages
  • Dimensions: 72 x 72 x 76mm (WxHxD)
  • Description here.

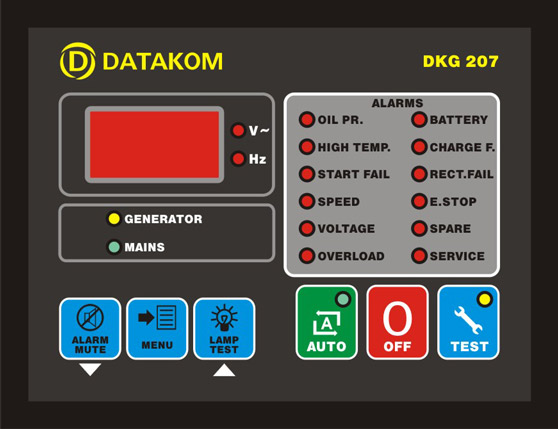

    DKG-207
    Low cost with analog measurements

  • KW and PF measurement (single phase)
  • Periodic maintenance request display
  • Logic level serial port
  • Dimensions: 130 x 100 x 39mm (WxHxD)
  • Description here.

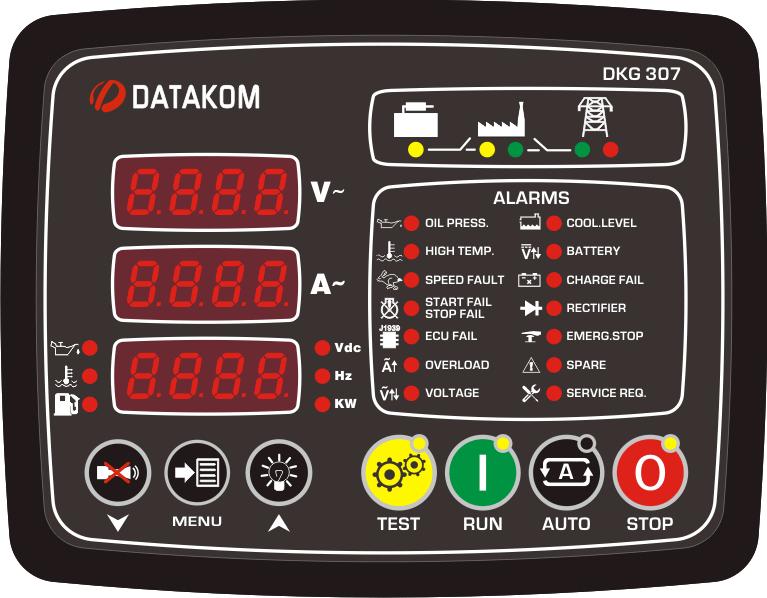

    DKG-307
    Wide temperature range
    and Analog measurements

  • Available with J1939 or MPU input
  • True RMS measurements
  • Genset KW and PF measurement
  • Battery backed-up real time clock
  • Weekly operation schedule programs
  • Built-in daily, weekly, monthly exerciser
  • 100 event logs with time stamp and measurements
  • Statistical counters
  • Serial RS-232 port
  • MODBUS communications
  • Dimensions: 172 x 134 x 46mm (WxHxD)
  • Description here.

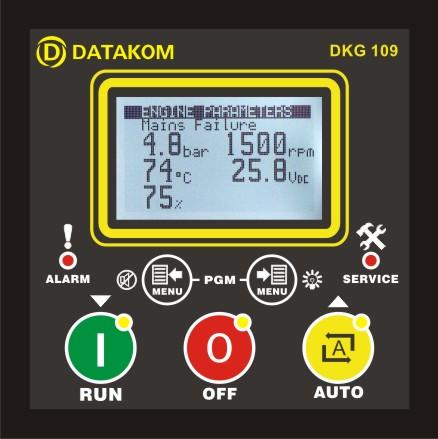

    DKG-109
    Graphic display, 96x96mm

  • J1939-CANBUS or magnetic pickup input
  • True RMS measurements
  • Multiple language support
  • Genset KW and PF measurement (single phase)
  • 100 event logs with time stamp and measurements
  • Logic level serial port
  • Dimensions: 102 x 102 x 53mm (WxHxD)
  • Description here.

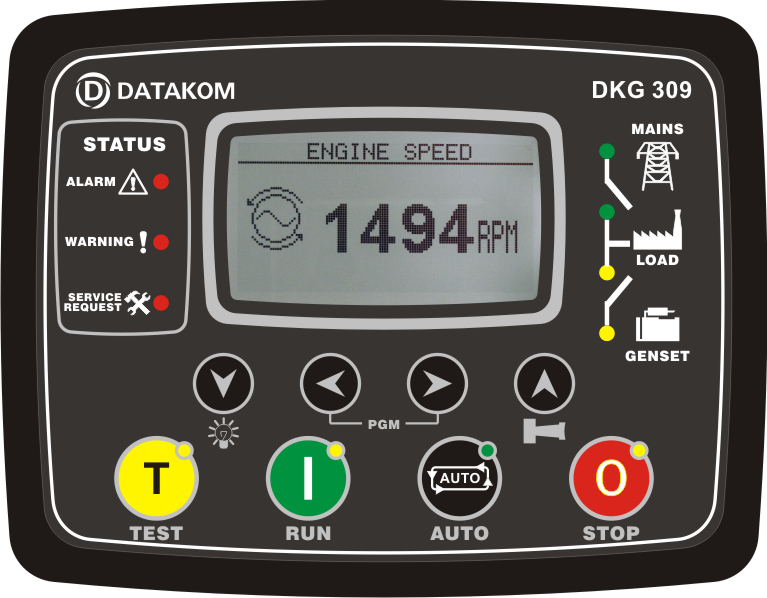

    DKG-309
    Basic, high performance and versatile

  • J1939-CANBUS or magnetic pickup input
  • True RMS measurements
  • Multiple language support
  • Genset KW and Power Factor measurement
  • Battery backed-up real time clock
  • Weekly operation schedule programs
  • Built-in daily, weekly, monthly exerciser
  • 100 event logs with time stamp and measurements
  • GSM SMS message sending on fault
  • Modem calls on fault
  • MODBUS communications
  • Dimensions: 172 x 134 x 46mm (WxHxD)
  • Description here.

    DKG-509
    High Performance and Versatile

  • J1939-CANBUS or magnetic pickup input
  • True RMS measurements
  • Multiple language support
  • Genset per phase KW and Power Factor measurement
  • Battery backed-up real time clock
  • Weekly operation schedule programs
  • Built-in daily, weekly, monthly exerciser
  • 100 event logs with time stamp and measurements
  • GSM SMS message sending on fault
  • Modem calls on fault
  • MODBUS communications
  • Optional internal GSM modem
  • Dimensions: 200 x 148 x 46mm (WxHxD)
  • Description here.

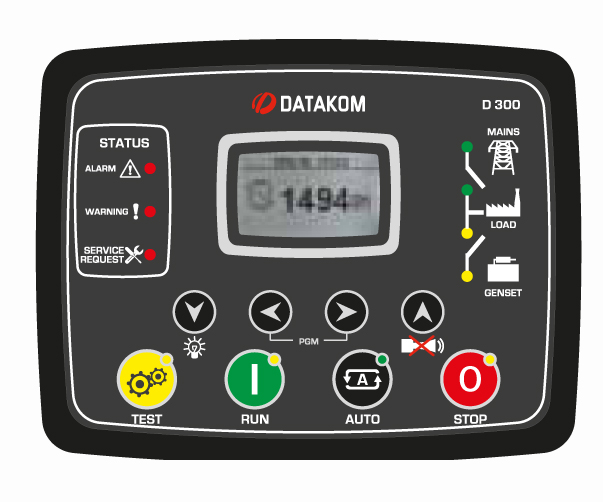

    D 300
    Low cost, graphic display

  • J1939-CANBUS or magnetic pickup input
  • True RMS measurements
  • Multiple language support
  • Genset KW and Power Factor measurement
  • 100 event logs with time stamp and measurements
  • Dimensions: 172 x 134 x 46mm (WxHxD)
