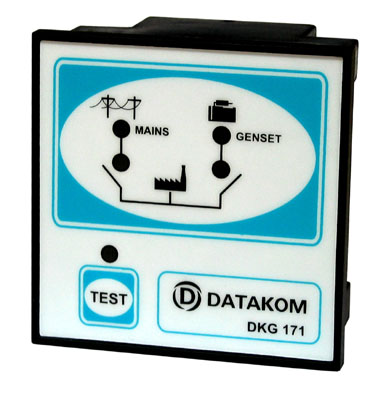

DKG-171
The basic ATS controller
  • Provides Remote Start signal for engine controller
  • Mains / genset voltage inputs: 3 / 1
  • Relay outputs: MC,GC, remote start
  • Factory set timers
  • Adjustable mains and genset low limits
  • Genset test mode available
  • Dimensions: 72 x 72 x 38mm (WxHxD)
  • right

    DKG-173
    DIN Rail ATS controller
    without DC supply
  • Provides Remote Start signal for engine controller
  • Mains / genset voltage inputs: 3 / 1
  • 16Amp MCB, GCB and remote start output
  • Adjustable MCB and GCB delays
  • Isolated mains and genset inputs
  • Installation: DIN Rail mounted
  • Dimensions: 70 x 115 x 66mm (WxHxD)
  • right

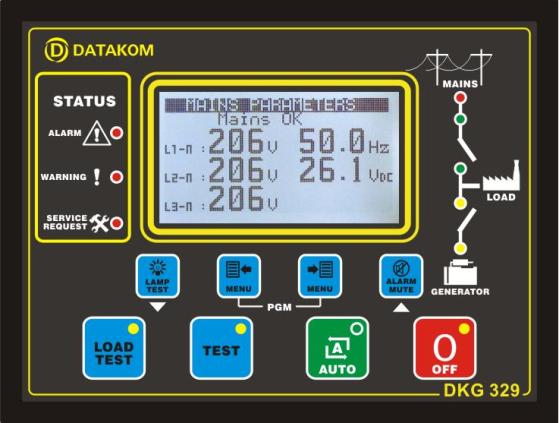

    DKG-329
    High Performance ATS controller
  • True RMS measurements
  • Synch check and no-break transfer
  • Mains / genset voltage inputs: 3 / 3
  • Load current transformer inputs: 3
  • Digital inputs: 7
  • Digital outputs: 6
  • Multiple language support
  • 3 level password support
  • Load KW and PF measurement
  • Battery backed-up real time clock
  • Weekly operation schedule programs
  • Built-in Daily /weekly / monthly exerciser
  • 100 event logs with time stamp and measurements
  • GSM SMS message sending on fault
  • Modem calls on fault
  • MODBUS communications
  • Dimensions: 172 x 134 x 46mm (WxHxD)
