DIN RAIL MOUNTED


Description here.

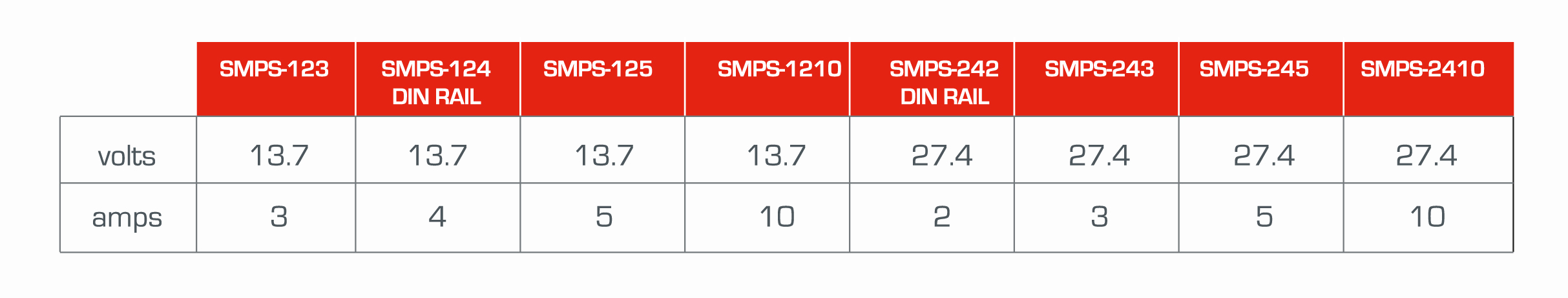

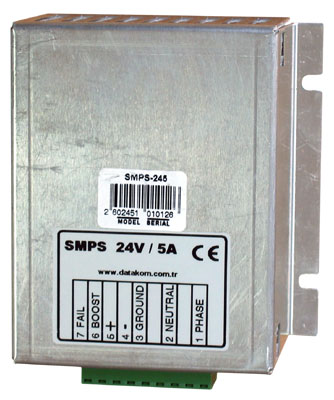

SMPS-123/125/243/245
  • These are fixed output voltage, current limited lead
    acid battery chargers especially designed for
    permanent connection to genset starter batteries.
    They maintain the batteries fully charged, without
    overcharging or gassing.
  • The chargers are designed in switchmode
    technology. Theri rugged design allows surviving in harsh electromagnetic environments found in automotive industry.
  • The low weight of the unit makes it ideal for use in highly vibrating generator control panels.
    The small dimensions allow compact panel design.
  • Thanks to their high efficiency, the self-heating of the chargers is kept in minimum levels allowing
    operation in warm environments.
  • 100 KHz switchmode architecture
  • Float charging system
  • Constant voltage output
  • Current limited
  • Ruggd design for industrial environments
  • Rectifier fail output
  • Boost charge input
  • Short circuit protection
  • Overload protection
  • High temperature protection
  • Plug-in connection system
  • Operating voltage range: 170-270VAC
  • Operating frequency range: 45-65 Hz
  • Operating temp range: -20 to +70 degrees Celsius
