right

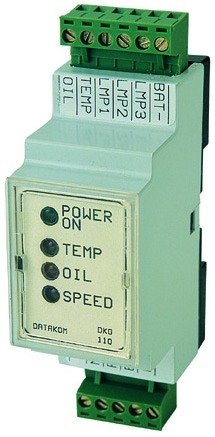

DKG-110
Low cost engine protection
  • Provides engine protection functions in a manual control panel
  • DIN rail mounted
  • 10 Amp fuel and alarm relay outputs
  • High engine temperature & low oil switch inputs
  • Overspeed-underspeed protection
  • 3 semiconductor lamp outputs
  • Generator phase voltage input
  • Standard dimensions, 36mm width
  • right

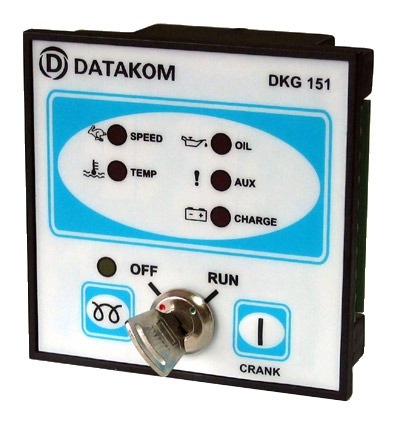

    DKG-151
    Low cost Manual Start Unit
  • 10 Amp fuel and crank relay outputs
  • Charge alternator excitation circuit, charge fail protection
  • High engine temperature & low oil pressure switch inputs
  • Overspeed-underspeed protection
  • Spare alarm input
  • User selectable 50/60Hz & energize to start/stop operations
  • Dimensions: 72 x 72 x 38mm (WxHxD)
  • right

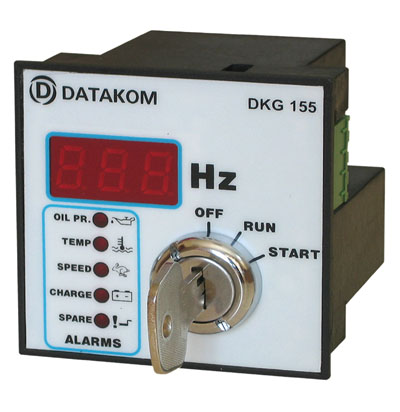

    DKG-155
    Manual start with high current outputs
  • 16 Amp fuel and crank outputs
  • Charge alternator excitation circuit, charge fail protection
  • High engine temperature & low oil pressure switch inputs
  • Overspeed-underspeed protection
  • Spare alarm input
  • User selectable 50/60 Hz operation
  • Dimensions: 72 x 72 x 52mm (WxHxD)
