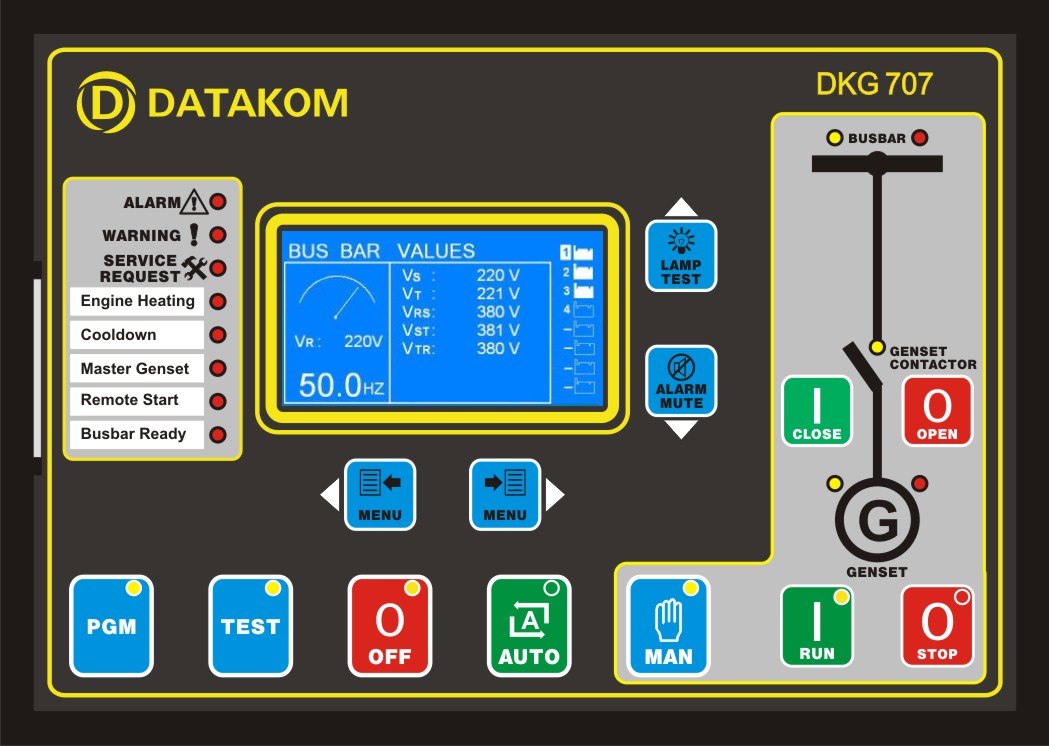

DKG-707
Basic multi-genset synchronization
and load share unit (up to 8 gensets) |
Both active and reactive load sharing
J1939 CANBUS electronic engine support
True RMS Measurements
Built-in Governor control
Fully isolated built-in AVR control
Fully isolated data link communication port
Soft loading and unloading of gensets
Equal aging of gensets
Programmable Logic Functions
Battery backed-up real time clock
Built-in daily, weekly, monthly exerciser
Weekly operation schedule programs
500 event logs with time stamp and full snapshot
Free MS-Windows Remote monitoring software
Isolated RS-485 MODBUS Support through optonal USB adaptor
Output expansion capability
Dimensions: 235 x 167 x 48mm (WxHxD)
|

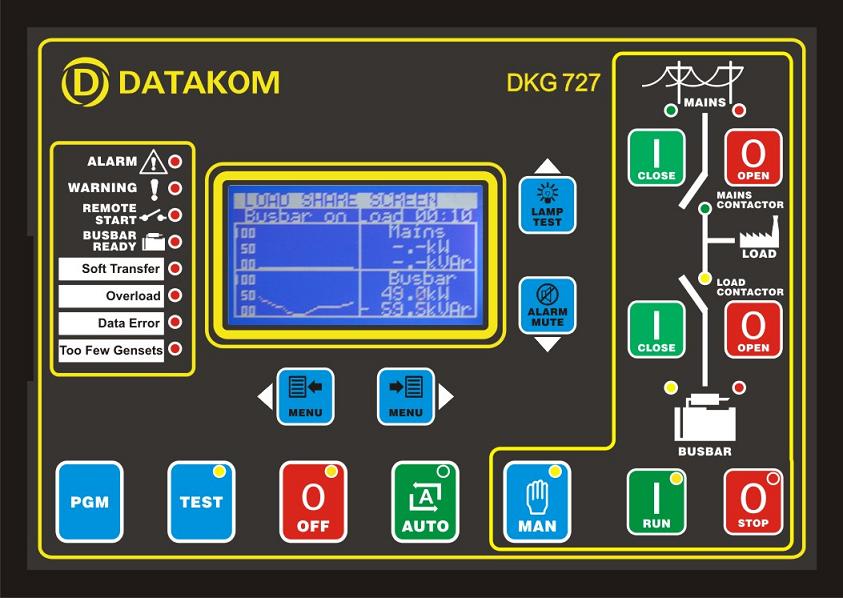

DKG-727
Basic mains synchronization unit |
Multi Genset soft transfer to/from mains
Multi genset power export to mains
Multi genset peak lopping (peak shaving)
Heavy Duty Feature
True RMS mains and busbar AC measurements
G-59 mains protections
Programmable Logic function
Fully isolated data link communication port
Battery backed-up real time clock
Built-in daily, weekly, monthly exerciser
500 event logging with time stamp and full snapshot
Weekly operation schedule programs
Free MS-Windows Remote monitoring SW
Isolated RS-485 MODBUS Support through optional USB adaptor
Output expansion capability
Dimensions: 235 x 167 x 48mm (WxHxD)
|
HMI-7000
Diplay Gloriously
|
7 inch 800x400 pixels color TFT LCD Touch Screen Panel
RS232 and RS485(2w/4w) connections
Multiple gensets within the same load sharing system can be viewed
Configurable kW and kVAr trend records
Configurable gauge limits
Compatible with all LCD display Datakom models
Built-in flash memory and Real Time Clock
USB Host port for mouse and keyboard connection
USB device port for PC connection
User programmable with free Scada based software
NEMA4/IP65 compliant front panel
Dimensions: 200 x 146 x 42.5mm
|
