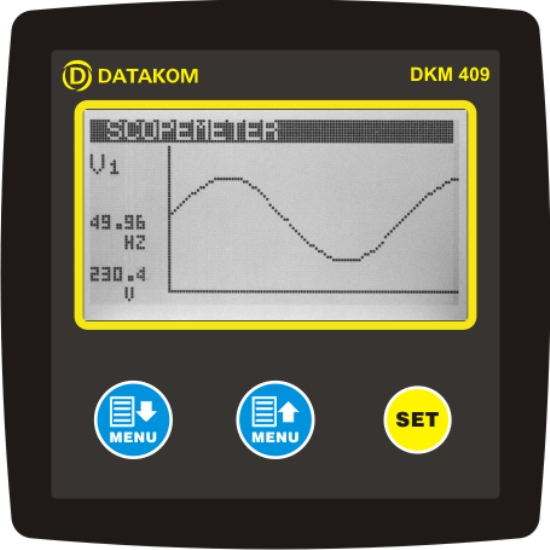

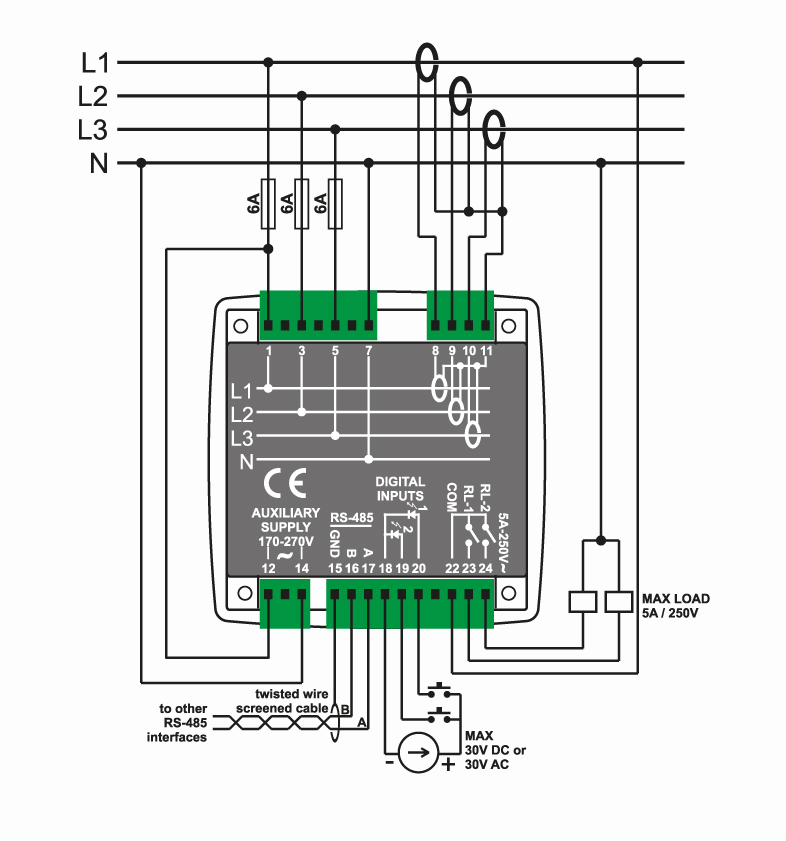

DKM-409
  • True RMS measurements
  • Accuracy:
    V-A-Hz: 0.5%
    kW : 1.0%
  • Harmonic distortion display (31 harmonics)
  • Oscilloscope, waveform display
  • Max demand display
  • User configurable display screen
  • Fully isolated RS-485 serial port
  • MODBUS-RTU communication
  • Free remote monitoring software
  • 2 configurable relay outputs
  • Energy pulse output capability
  • Optically isolated, configurable digital inputs
  • Switched dual active-reactive power counters
  • Independent mains/generator energy metering
  • Configurable user counters
  • Voltage transformer ratio for MV applications
  • Password protected front panel programming
  • High visibility, 128x64 pixels graphic LCD
  • Dimensions: 102x102x53mm
  • Operating temperature: -20 to +70 degrees Celsius
  • Sealed front panel (IP54)
  • Plug-in connection system
  • Non flammable enclosure
  • Flush mount with brackets
  • right

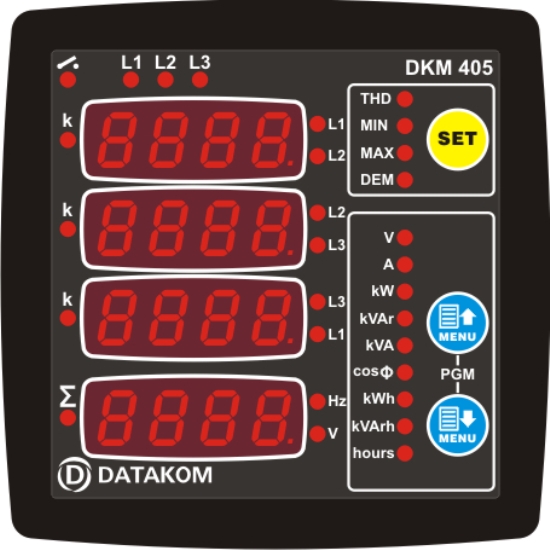

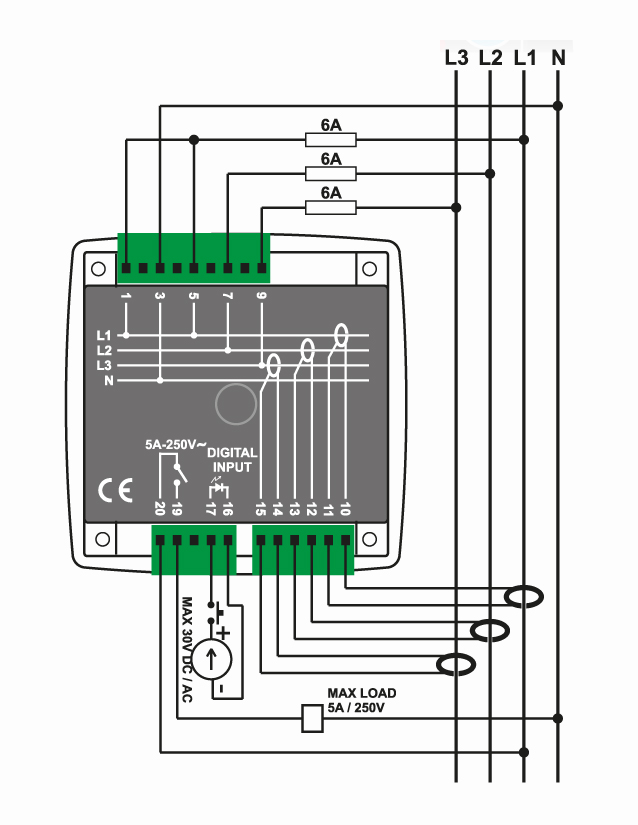

    DKM-405
  • True RMS measurements
  • Accuracy:
    V-A-Hz: 0.5%
    kW : 1.0%
  • Total harmonic distortion display
  • Max demand display
  • Configurable relay output
  • Energy pulse output capability
  • Optically isolated, configurable digital input
  • Switched dual active-reactive power counters
  • Independent mains/generator energy metering
  • Configurable user counters
  • Voltage transformer ratio for MV applications
  • Password protected front panel programming
  • Dimensions: 102x102x53mm
  • Operating temperature: -40 to +70 degrees Celsius
  • Sealed front panel (IP54)
  • Plug-in connection system
  • Non flammable enclosure
  • Flush mount with brackets
  • right

    DKM-411
  • True RMS measurements
  • Accuracy:
    V-A-Hz: 0.2%
    kW-kVAr-kVA : 0.4%
  • 3.5% TFT LCD, 320x240pixels
  • Internal battery backed-up real time clock
  • Harmonic distortion display of V/I (63 harmonics)
  • Oscilloscope, waveform display of V/I
  • Phase vector displays
  • User configurable display screen
  • 2 configurable relay output
  • 2 opto-isolatedm configurable digital inputs
  • Both mains/generator energy metering
  • Voltage transformer ratio for MV applications
  • Long term data recording on USB flash memory, unlimited capacity
  • Multiple language support
  • 250 event logs with time stamp and measurements
  • Free PC software (USB-Modbus-IP Connected)
  • Free Central Monitoring through internet
  • Reduced panel depth, Sealed front panel (IP54)
  • Dimensions: 102x102x53mm, excluding connectors (WxHxD)
