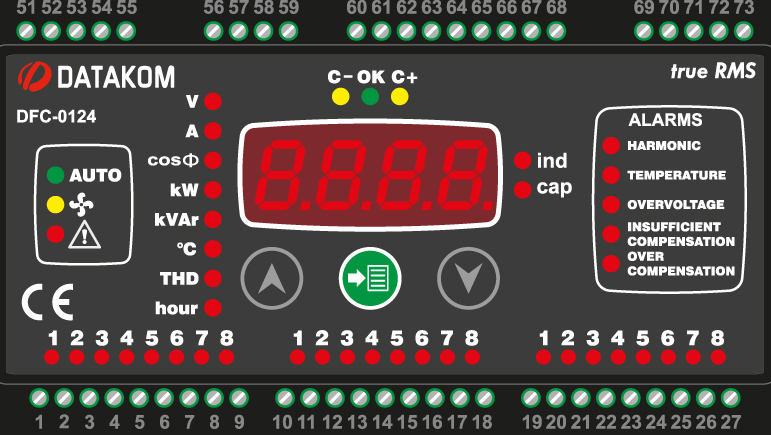

DFC 0124

right

DDU 128
DISPLAY MODULE
(OPTIONAL)
  • WEB based design
  • Embedded web page
  • Ethernet port
  • Isolated RS-485 communication port
  • Support for external LCD display module
  • Modbus-RTU communications
  • SNMP communication
  • Modbus on ethernet communication
  • Internal storage memory for data logging
  • Free remote monitoring software
  • 24 steps
  • Complies with new power quality standards
  • 3 phase measurement
  • Auto learning algorithm
  • Single phase and 3-phase power factor correction
  • Smart capacitor management, equal aging
  • Zero crossing switching (3-phase correction only)
  • True RMS measurements
  • Accuracy:
    V-A-Hz: 0.5%
    kW: 1%
  • Harmonic distortion measurement (31 harmonics)
  • 2 configurable relay outputs
  • Genset input
  • Dual target power factor
  • Temperature protection for capacitors
  • Switched dual active-reactive power counters
  • Voltage transformer ration for MV applications
  • Password protected front panel programming
  • Dimensions: 158x87x60mm
  • Operating temperature: -20 to +70 degrees Celsius
  • Plug-in connection system
  • Non flammable enclosure
  • DIN Rail mounted, easy installation
  • right

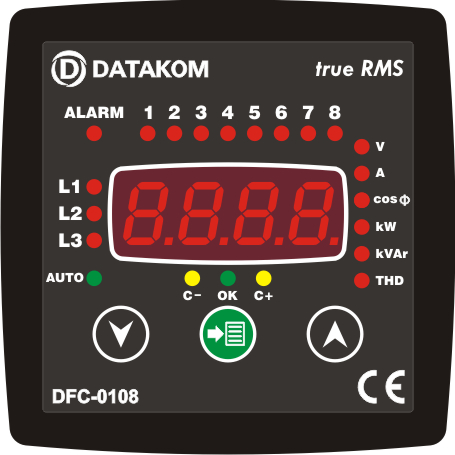

    DFC 0108
  • 8 steps
  • Complies with new power quality standards
  • 3 phase measurement
  • Auto learning algorithm
  • Single phase and 3-phase power factor correction
  • True RMS measurements
  • Accuracy:
    V-A-Hz: 0.5%
    kW: 1%
  • Total harmonic distortion display
  • Configurable relay output
  • Genset input
  • Active-reactive power counters
  • Voltage transformer ration for MV applications
  • Password protected front panel programming
  • Dimensions: 102x102x53mm
  • Operating temperature: -40 to +70 degrees Celsius
  • Sealed front panel (IP54)
  • Plug-in connection system
  • Non flammable enclosure
  • Flush mount with brackets
