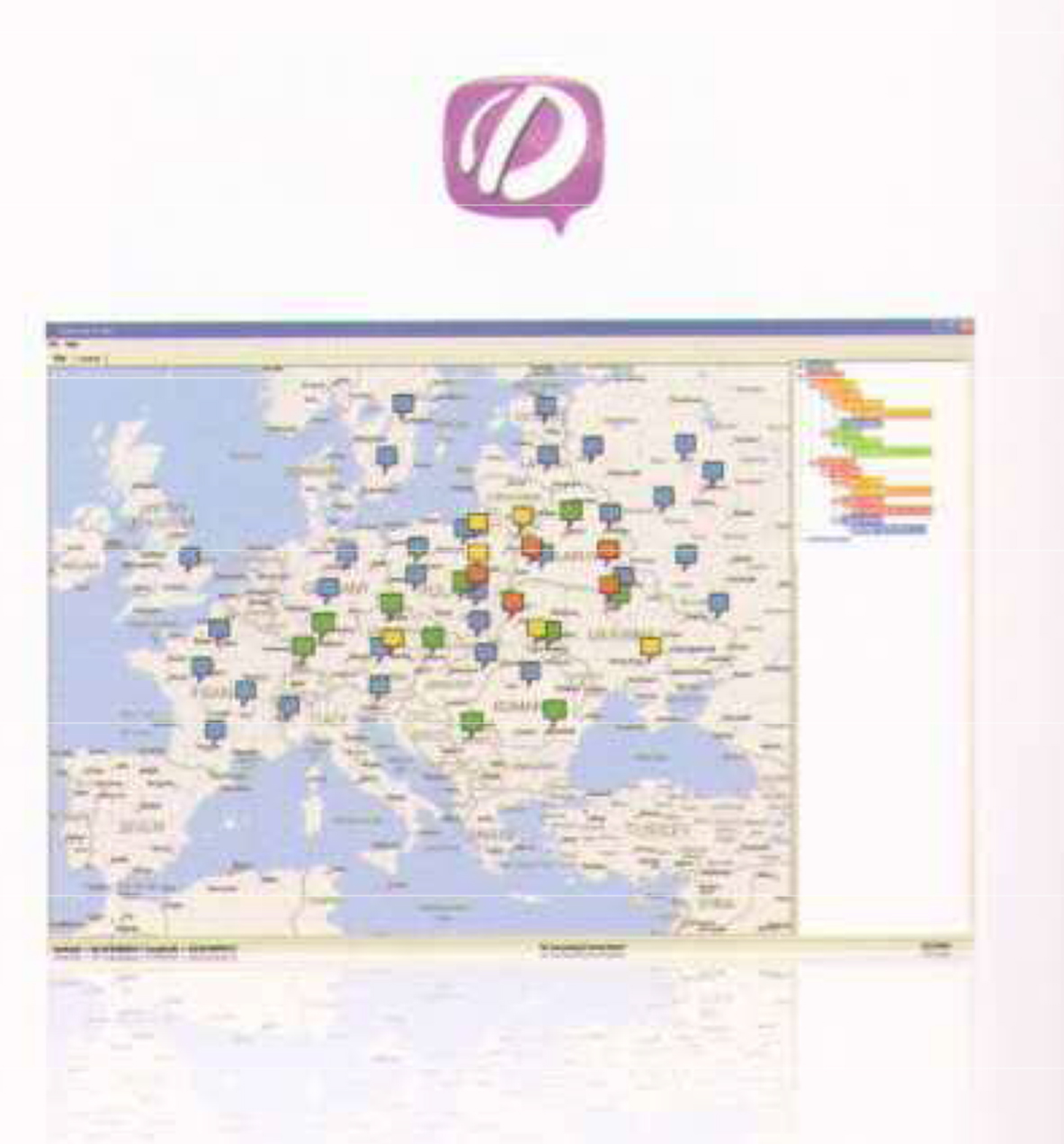

RAINBOW SCADA
|
Monitors up to 30,000 endpoints
Free of charge up to 100 endpoints
Provides data security, data is sent to your IP address only
Uses internet based dynamic world map
On-line display of endpoint statuses on map and side bar
Hierarchical structuring and grouping of endpoints
Remote control of endpoints
Recognizes automatically all Datakom IP enabled models
Supports all Datakom products through DKG-210 gateway
Supports 3rd party Modbus enabled products through DKG-210 gateway
Data recording and analysis
HTML interface for web monitoring
|

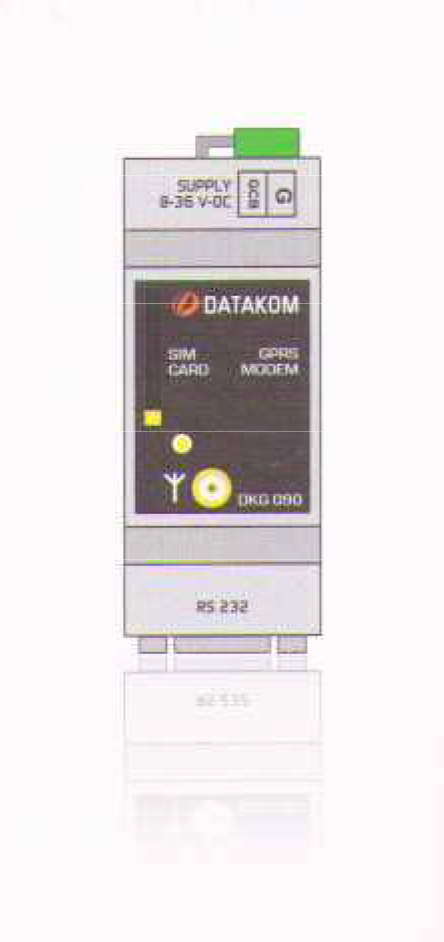

DKG-090
|
Quad-band GSM/GPRS 850/900/1800/1900MHz
Quad-band, magnetic antenna, with 2m cable supplied together with the module
Connects to Rainbow Scada through GPRS
Connects all Datakom IP enabled modules to Rainbow Scada
DIN Rail mounted
Lock-up free operation with Datakom IP enabled models
GPRS Class 10 communications
|

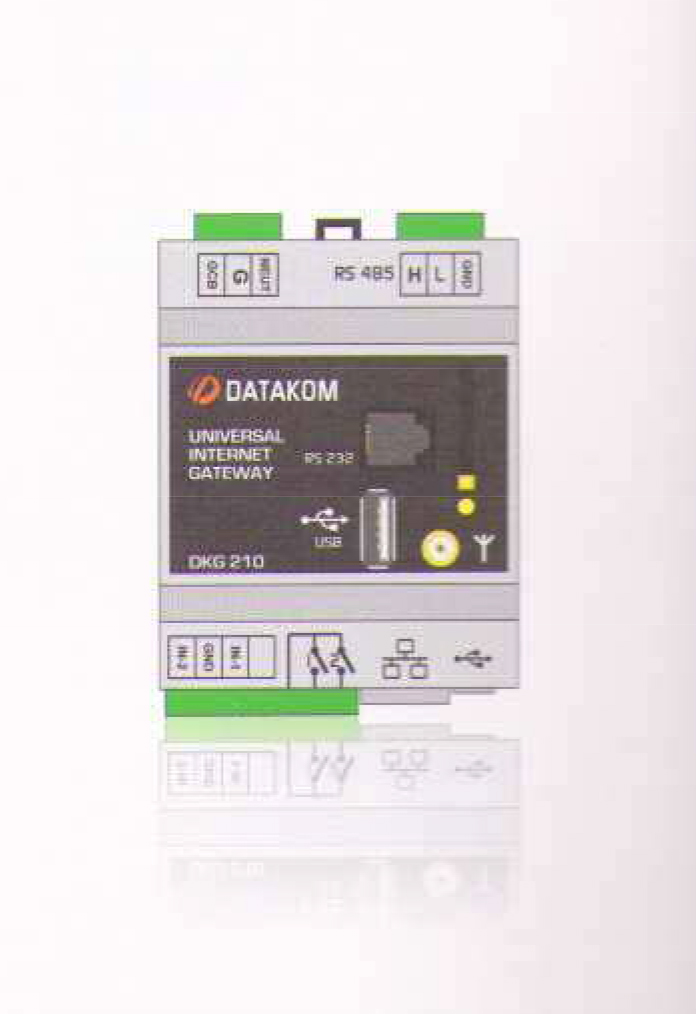

DKG-210
|
Connects to Rainbow Scada through ethernet and GPRS
Connects all Datakom modules to Rainbow Scada
Ready to connect all 3rd party products to Rainbow Scada
Connects up to 16 endpoints through RS-485 Modbus
GSM_SMS and E-mail sending
Designed for harsh industrial environment
AC 230V power supply
Optional DC 8-36V power supply
Internal GSM-GPRS modem
RS-485 MODBUS port
RS-232 port
CANBUS port
USB Host port for Flash Memory
USB Device port for configuration
Free Rainbow Plus configuration program
|
