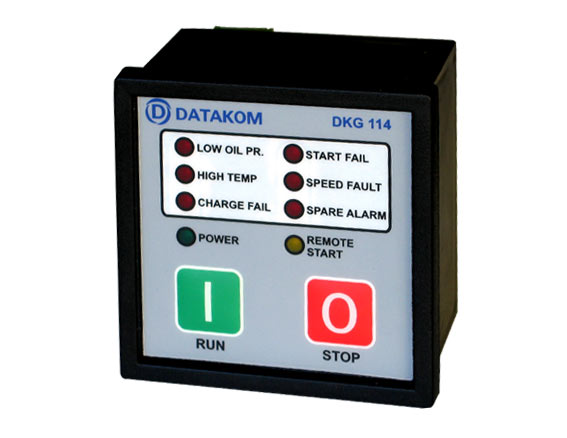

DKG-114
Basic, zero power at rest |
Charge alternator excitation circuit, charge fail protection
Jumper selected options for cooldown, 50/60Hz and Aux relay
Selectable engine running signal
(from genset voltage or charge alternator)
Dimensions: 72 x 72 x 43mm (WxHxD) |
DKG-116
The lowest cost Remote Start module |
Suitable for gasoline and diesel gensets.
True RMS measurements
Tamper proof engine hours display
Dimensions: 102 x 55 x 40mm (WxHxD)
|
DKG-215
Basic with measurements,
zero power at rest |
Genset KW and PF measurement
Engine hours run counter
Periodic maintenance request display
Statistical counters
Dimensions: 102 x 102 x 53mm (WxHxD) |
DKG-227
Basic with measurements,
zero power at rest |
Genset KW and PF measurement
Engine hours run counter
Periodic maintenance request display
Statistical counters
MS-Windows remote monitoring SW
Dimensions: 130 x 100 x 39mm (WxHxD) |

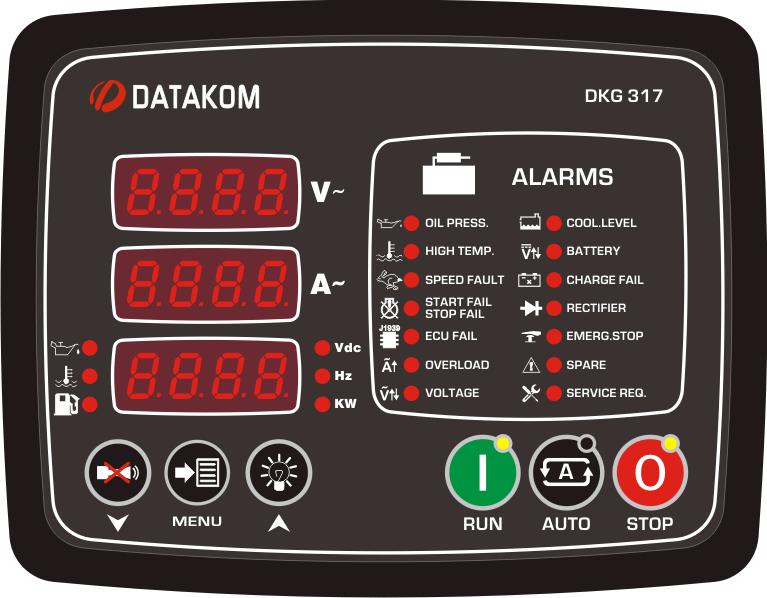

DKG-317
Wide temperature range
& analog measurements |
Available with J1939 or MPU unit
True RMS measurements
Genset KW and PF measurement
Battery backed-up real time clock
Weekly operation schedule programs
Built-in daily, weekly, monthly exerciser
100 event logs with time stamp
Statistical counters
Serial RS-232 port
MODBUS communications
Dimensions: 172 x 134 x 46mm (WxHxD) |
DKG-119
Graphic display, 96x96mm |
J1939-CANBUS or magnetic pickup input
Genset KW and PF measurement(single phase)
100 event logs with measurements
Logic level serial port
Dimensions: 102 x 102 x 53mm (WxHxD) |
DKG-319
Basic, high performance & versatile |
J1939-CANBUS or magnetic pickup input
True RMS measurements
Multiple language support
Genset per phase KW and PF measurement
Battery backed-up real time clock
Weekly operation schedule programs
Built-in daily, weekly, monthly exerciser
100 event logs with time stamp and measurements
GSM SMS message sending on fault
Modem calls on fault
MODBUS communications
Dimensions: 172 x 134 x 46mm (WxHxD) |
DKG-519
High performance & versatile |
J1939-CANBUS or magnetic pickup input
True RMS measurements
Multiple language support
Genset per phase KW and PF measurement
Battery backed-up real time clock
Weekly operation schedule programs
Built-in daily, weekly, monthly exerciser
100 event logs with time stamp and measurements
GSM SMS message sending on fault
Modem calls on fault
MODBUS communications
Optional internal GSM modem
Dimensions: 200 x 148 x 46mm (WxHxD) |
D 300-RS (Remote Start)
Low cost, graphic display |
J1939-CANBUS or magnetic pickup input
True RMS measurements
Multiple language support
Genset per phase KW and PF measurement
100 event logs with time stamp and measurements
Dimensions: 172 x 134 x 46mm (WxHxD) |
